0127 カイロス
カイロスの口は、ラッキーのおなかのポケットとたまご、の折り方のヴァリエーションです。
この折り方は、他では見たことがありませんが、いろいろな場面で応用できるアイディアです。


この作品は1999年に著作権者の監修を受け正式に許諾を得たものです。
★ゲームフリークのチェック
◆最初のチェックでOKをいただきました。
◆別ヴァージョンはN.G.となりました。

絵の具で顔を描くだけでなく、目や口を折り出してみましたが、落選しました。
つくり込み過ぎてもよろしくない、全体のバランスで本質を捉える方がずっと大切、と思いました。
つくり方の折り図


今回制作した折り図
◇折り図
1 基本折り
2 カイロスのからだ
3 カイロスのあたま
■カイロスのからだは、黄土色の紙で、まず基本折りの図20まで折る。
■カイロスのあたまは、黄土色の紙で、こちらも基本折りの図20まで折る。
1 基本折り

English Commentary
Basic Folding
1 Fold the bottom corner to meet the top corner.
2 Make a crease and return it to its original position.
3 Rotate the paper 90 degrees, fold the other pair of corners together, make a crease and return it to its original position.
{Flip}
4 Rotate the paper 45 degrees and fold the bottom edge to line up with the top edge.
5 Make a crease and return it to its original position.
6 Rotate the paper 90 degrees and fold the other pair of edges together.
7 Hold the crease ▲ made in step 6 with your fingers and fold gently from both sides together.
8 Let the paper naturally fold along the creases to form the shape of 9.
9 A basic square is created.

English Commentary
{Enlarge image}
10 Change the top and bottom positions.
With the opening facing downwards, fold the bottom left and right edges to meet the crease in the middle.
11 Make a crease and return.
12 Fold the top at the point where the crease made in 11 intersects with the top left and right edges.
13 Make a crease and return.
14 While opening the front paper upwards, fold the left and right edges inward along the crease made in 11.
15
16
{Flip}
17 Make creases on this side in the same way as 10 and 11.
18 Fold in the same way as 14, 15 and 16 to form 19 and 20.
19
20 The basic fold is complete.
2 カイロスのからだ

English Commentary
The body of Pinsir
1. Fold up to the 20th basic fold, then change the top and bottom positions. Create the arms. Fold the top left and right sides of the paper in an inside reverse fold. Fold the left side slightly downwards from the side. Fold the right side straight to the side.
2. Make the legs.
3.
{Flip}
4.
5. Fold at a position about 12 mm from the tip.
6. Fold back by a width of 1 mm.
7. Fold the tip by about 3 mm.
8. The legs are complete.
{Flip}
9. Make the hands. Fold upwards while opening the arrows.
10. Make cuts with scissors and fold into the shape of fingers.
{Enlarge diagram}
11.
12. Kairos’s body is complete.

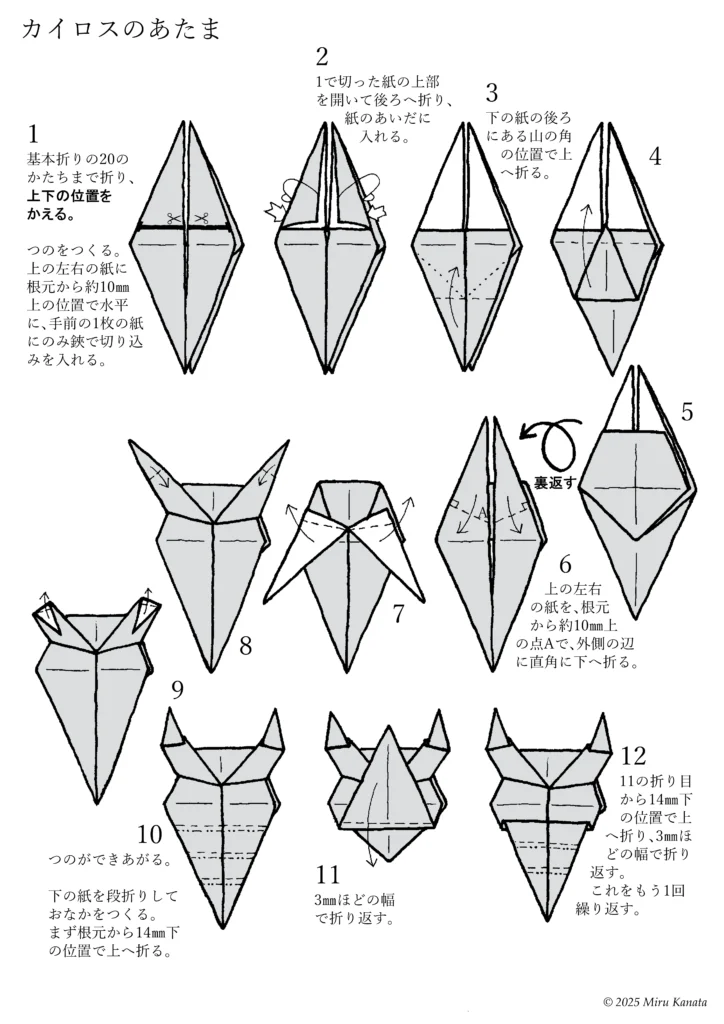

3 カイロスのあたま

English Commentary
Pinsir’s head
1. Fold the paper to the shape of the 20th basic fold, then change the top and bottom positions. Make the horns. Make horizontal cuts with scissors on the top left and right pieces of paper, about 10 mm above the base, only on the front piece of paper.
2. Open the top of the paper cut in step 1 and fold it to the back, inserting it between the pieces of paper.
3. Fold the bottom piece of paper upwards at the corner of the mountain at the back.
4.
5.
{Flip}
6. Fold the top left and right pieces of paper downwards at point A, about 10 mm above the base, perpendicular to the outer edge.
7.
8.
9.
10. The horns are now complete. Next, make the belly by folding the bottom piece of paper in a step fold. First, fold it upwards at a position 14 mm below the base.
11. Fold it back with a width of about 3 mm. 12.
Fold it upwards at a position 14 mm below the fold in step 11, and fold it back with a width of about 3 mm. Let’s repeat this one more time.

English Commentary
13. Fold the bottom tip.
{Enlarge diagram}
14.
15.
16.
{Flip}
17.
18. Fold the corner of the mountain by about 2 mm.
19.
20. While holding down ▲ with your finger, shape the mouth.
21. The head of Kairos is complete.
22. Attach the body to the back of Kairos’s head with double-sided tape. Kairos is complete.

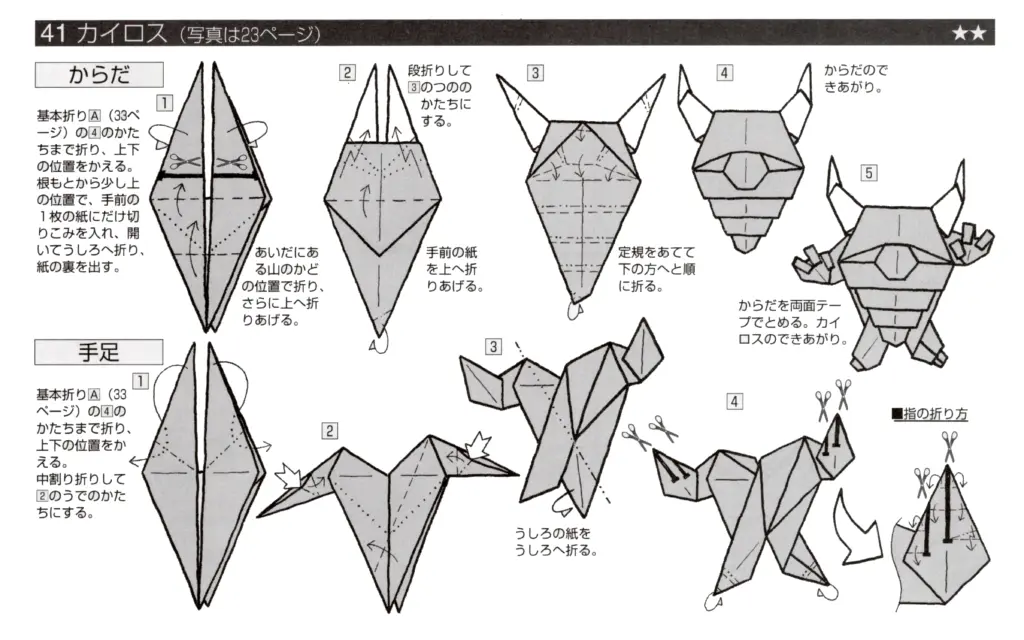

参考・2000年の本に掲載した折り図
